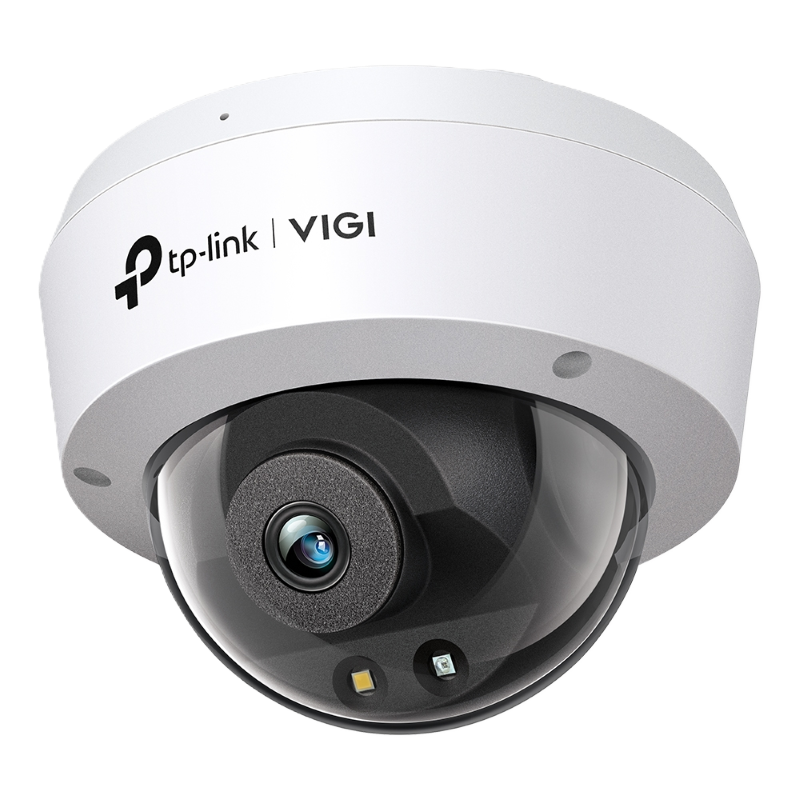

IP camera VIGI EASYCAM C230 - 2.8
€51.61
Tax included
3MP Dome camera with 2.8mm focal length. 30m infrared illumination. Human and vehicle recognition, line crossing, intrusion, abandoned and stolen object detection. Built-in microphone. PoE, 12V DC, IP67, IK10.
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
3MP Dome camera with 2.8mm focal length. 30m infrared illumination. Human and vehicle recognition, line crossing, intrusion, abandoned and stolen object detection. Built-in microphone. PoE, 12V DC, IP67, IK10.
General
| Type | Dome |
| Series | Easycam |
| Color | White |
| Image sensor | 1/2.8” 3 Megapixel Progressive CMOS |
| Resolution | 3M (2304 x 1296) |
| Effective pixels | 3 |
| Scanning system | Progressive |
| Electronic shutter speed | 1/3 to 1/10000 s |
| Minimum illumination | Color: 0.005 Lux; 0 Lux with IR/White Light |
| Day/night modes | Auto (ICR) / Color / B&W |
| IR illumination up to | 30 |
| IR On/Off Control | Manual/Auto/Off |
| IR LEDs | 1 |
| Fill light (white light) distance up to | 30 m |
| Fill light on/off | Auto/manual/off |
| Number of fill LED lights | 1 |
Camera
| Signal-to-noise ratio | > 52dB |
| Housing movement | 0° - 355° (pan) and 0° - 75° (tilt) |
Lens
| Lens | Fixed |
| Focal length | 2.8 mm |
| Mounting type | M12 |
| Max. aperture | F1.6 |
| Field of view | 107.5° (H) |
Video
| Frames per second | Main stream: 2304x1296, 2048x1280, 1920x1080, 1280x720; Sub stream: 704x576, 640x480, 352x288, 320x240 |
| Video compression | H.265+/H.265/H.264+/H.264 |
| Streaming capability | 3 main streams, 3 sub streams |
| Bitrate | 256 Kbps - 4 Mbps |
| Bitrate control | CBR/VBR |
| OSD menu | Yes |
| BLC | BLC / HLC / WDR |
| WDR | DWDR |
| Noise reduction | 3D DNR |
| Smart illumination | Yes |
| Mirror image | Yes |
| Privacy masks | 4 zones |
| Region of interest | yes |
Perimeter protection
| AI features | Abandoned/missing object, Intrusion, Perimeter protection, Privacy masking, ROI (Region of interest), Smart Sound Detection, SMD Plus (human/vehicle detection), Line crossing |
Smart features
| Motion detection | yes |
| Intelligent video surveillance | Line crossing; Intrusion; Abandoned/missing objects |
| Smart motion detection | yes |
| Alarm signal | Motion detection/tampering; exception |
Certification
| Certifications | CE, NTRA, VCCI, BSMI |
Additional ports
| Audio compression | G.711 alaw |
| Audio sample rate | 8KHz |
| Audio bitrate | 64 Kbps per channel |
| Built-in microphone | yes |
| SD card | no |
Network features
| Ethernet | 1 RJ-45 Ports (10/100 Mbps) |
| Mobile app | Android, iOS |
| Network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, 802.1x, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP, RTMP |
| Compatibility | ONVIF Profile S/T |
| Web browser live view | IE, Chrome, Firefox, Safari |
| Management software | VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS, VIGI Config Tool, VIGI PC Client |
Power supply
| Power supply | 12 VDC (±5%); PoE (802.3af/at) |
| Power consumption | Max. 4.7 W (12 VDC); 5.5 W (PoE) |
Operating conditions
| Operating temperature | -30°C to +60°C |
| Operating humidity | < 95% RH (non-condensing) |
| Storage temperature | -40°C to +60°C |
| Protection rating | IP67 |
| Vandal resistance rating | IK10 |
Construction
| Material | Plastic |
| Dimensions | 115 mm × 86 mm × 115 mm |
| Net weight | 0.29 kg |
| Gross weight | 0.47 kg |
