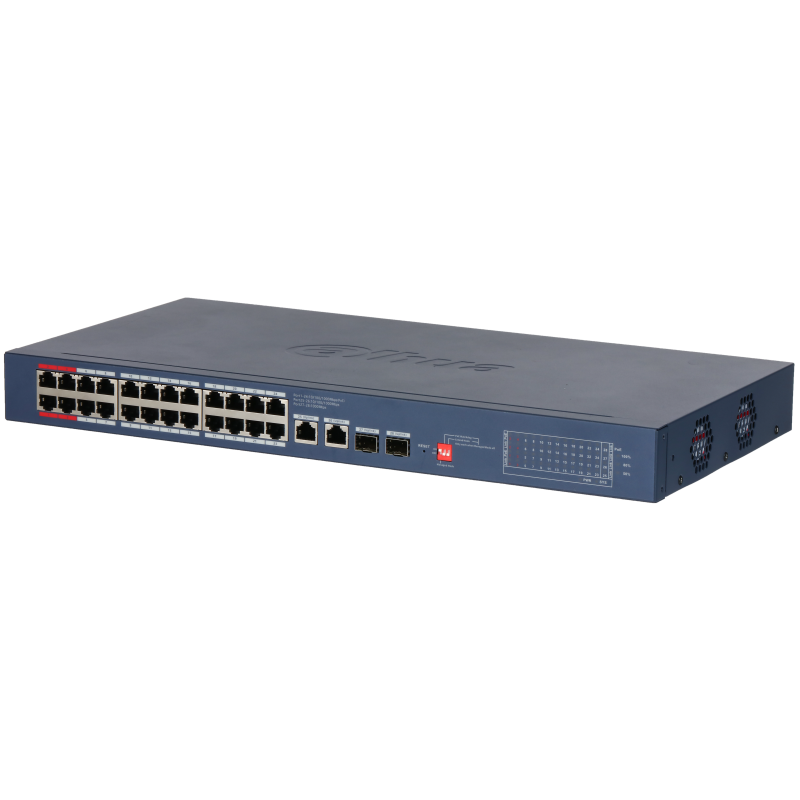

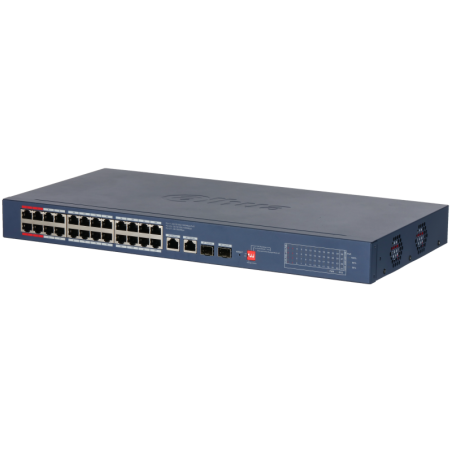

Switch Dahua CS4228-24GT-240

Name: Switch Dahua CS4228-24GT-240
Brand: Dahua
SKU: 1750031_3
Price: 364.14 EUR
Availability: InStock

€364.14

Tax included

Quantity

Last items in stock

Secure payments

SSL-secured connection, cash on delivery payment.

Fast delivery

Delivery nationwide – arranged after the order.

Returns

14-day right of withdrawal under consumer protection law.

Managed	yes
Layer	Layer 2
Gigabit	yes
PoE	yes
Hi-PoE	Ports 1-4: 90W
Number of ports	24
Mounting type	Communication cabinet or free-standing
Usage type	Standard environment

Ethernet ports	24 × RJ-45 10/100/1000 Mbps (PoE); 2 × RJ-45 10/100/1000 Mbps (Uplink); 2 × SFP 1000 Mbps (Uplink)
Optical ports	2*1000 Mbps
PoE consumption	Ports 1-4 ≤90W, Ports 5-24 ≤30W, Total ≤240W
PoE pin assignment	Port 1-2: 1,2,4,5 (V+),3,6,7,8 (V-) Port 3-16: 1,2, (V+), 3,6, (V-)
PoE protocols	IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt
PoE Watchdog	yes
Compliant with standards	IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3z; IEEE 802.3az; IEEE 802.3ad
Switching capacity	56 Gbps
Packet forwarding rate	41.664 Mpps
Packet buffer memory	4Mbit
MAC table	8000
Flow control	Supports IEEE802.3X-based flow control
Power supply	100–240 VAC, 47–63 Hz, max 4 A
Operating temperature	-10°C ~ 55°C
Operating humidity	10% ~ 90% (non-condensing)
Electrostatic protection	Air discharge 8KV, Contact discharge 6KV
Lightning protection	Common mode 6KV, Differential mode 1KV
Weight (net)	2.55 kg
Dimensions (W x L x H)	440mm × 228.81mm × 43.65mm

VLAN support	802.1Q
Port aggregation	Static link aggregation
Port mirroring	Local Port Mirroring, N:1 Mirroring
DHCP support	DHCP client
Security features	Port isolation
Control	Web Management, Cloud Management, Logs, Fault Alarm
PoE management	Power consumption management, Power on/off, Overload power cut-off
