- New

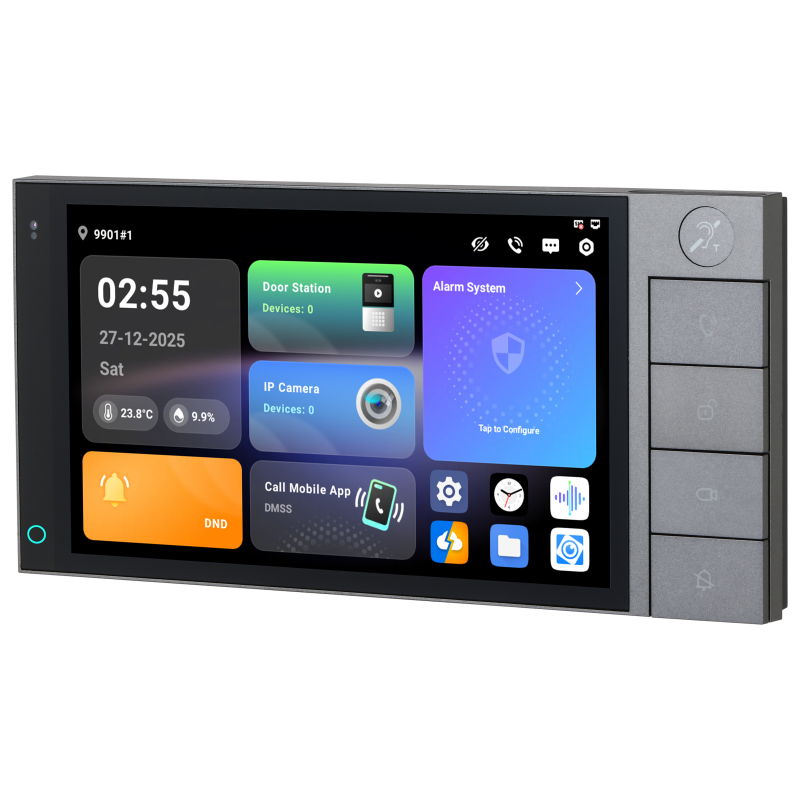

Control panel Dahua SCP3022B-IBZ-S
€549.78
Tax included
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
General
| Color | Black |
| Audio / Video | Video |
| Display type | 7" IPS capacitive |
Visual
| Housing | PC+ABS |
Features
| Network | 1 RJ-45 10Mbps/100Mbps |
| Network protocol | IPv4;RTSP;UDP;DNS;FTP;RTP;TCP;SIP |
| Wi-Fi | yes |
| Wireless standard | IEEE802.11b/g/n, 2.4GHz |
| RS-485 | yes |
| Audio input | 2 |
| Audio output | Built-in speaker |
| Alarm input/output | 8 / 1 |
| Call from floor doorbell | Yes |
Technical specifications
| Power supply | 48 VDC, 0.5 A, PoE |
| PoE | yes |
| Consumption | Standby ≤8W, operating ≤13W |
| Operating temperature | -10° - +55° °C |
| Max. operating humidity | 10%–95% (RH), non-condensing |
| Mounting | Surface mount |
| Certifications | CE |
| Dimensions | 210.2 × 103.1 × 18.6 mm |
| Number of wires | 2 wires |
| Cabling type | Two-wire cable |
