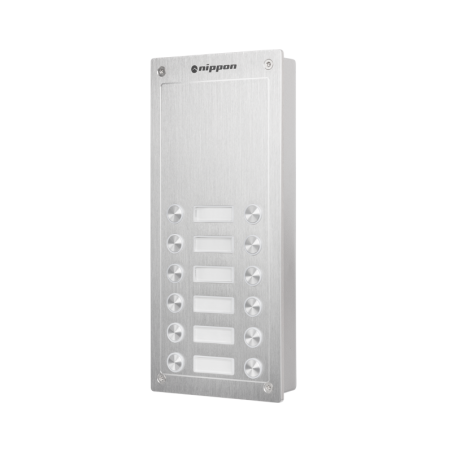

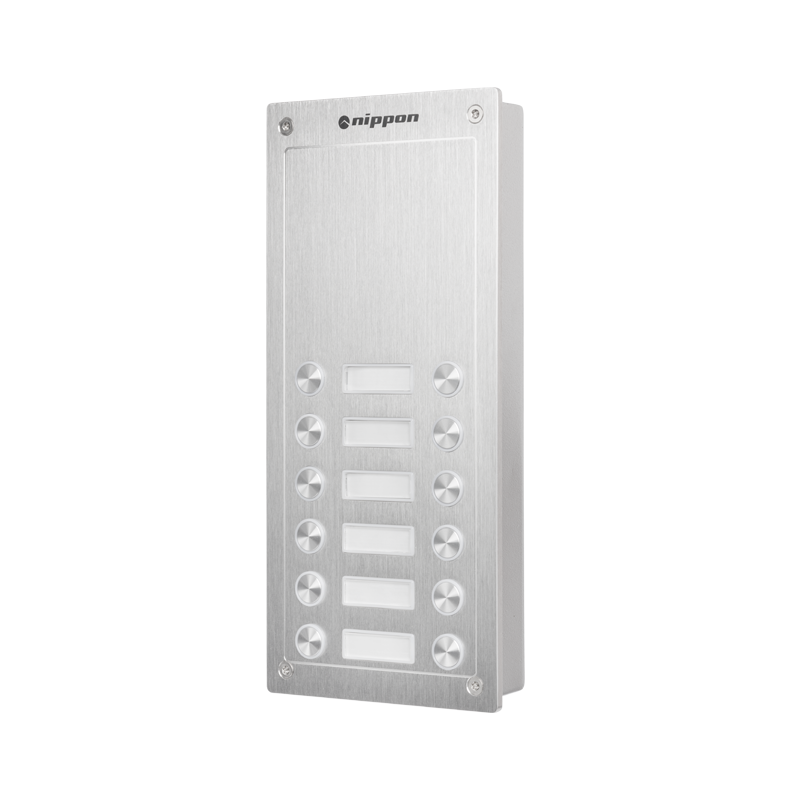

Expansion panel for Nippon door entry system (2*6)

€93.87
Tax included
Quantity
Last items in stock

  Secure payments

SSL-secured connection, cash on delivery payment.

  Fast delivery

Delivery nationwide – arranged after the order.

  Returns

14-day right of withdrawal under consumer protection law.

General

ColorSilver
Number of subscribersMulti-subscriber
Phonic groupno
Audio / VideoAudio

Visual

HousingAluminum

Features

Subscriber dialingPush button
RFID readerno
Monitor functionNo
Eavesdropping protectionYes
Button backlightyes

Technical specifications

Power supply15Vdc
Standby consumption< 100 mA
Operating consumption< 200 mA
Operating temperature-40° - +85° °C
Max. operating humidity45 - 95 %
MountingFlush mount, Surface mount
Dimensions284 x 130 mm
Flush-mount dimensions274 x 120 x 31 mm
Package includesExpansion panel, Instructions: BG; EN, Mounting kit, Connection cables, Surface/flush mount box, Silicone ring, Surface/flush mount gasket
Nippon
2010013_1
1 Item
