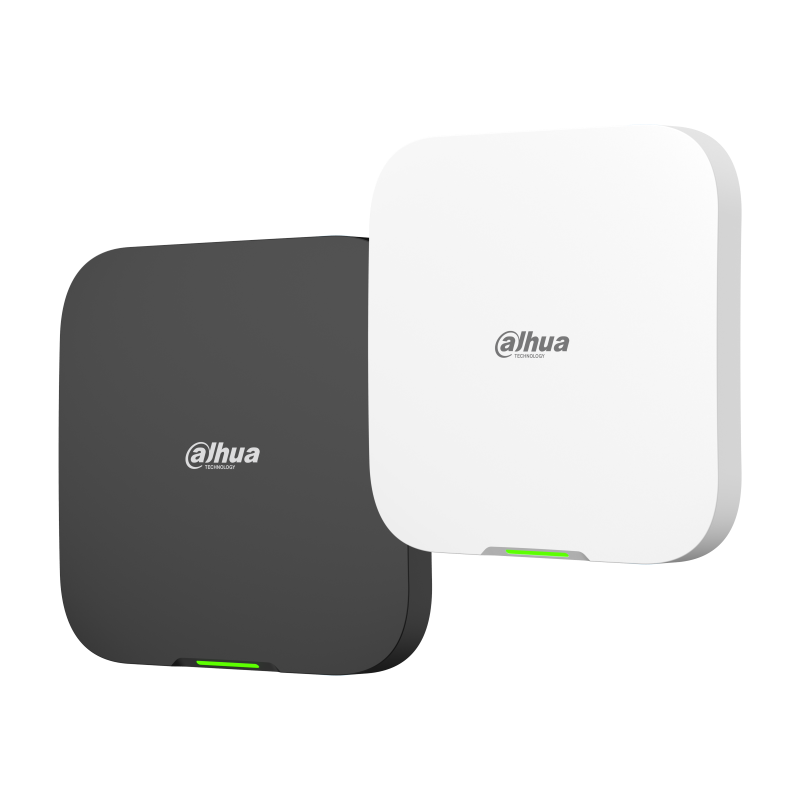

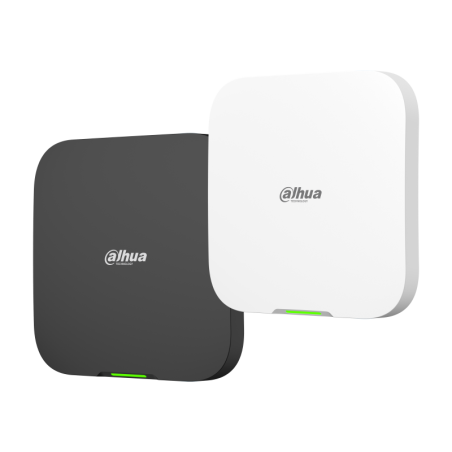

Alarm system Hub 2 Dahua ARC3800H-W2(868) WI-FI - black
€190.74
Tax included
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
General
| Type | HUB |
Input / Output
| Connected devices | 150 |
| User management | 33 users via the mobile app and 32 users via keypad |
| Connected sirens | 6 |
| Connected remotes | 64 |
| Max. number of connected radio range extenders | 4 |
Video
| Video surveillance | 8-channel IPC, video only on alarm trigger. |
Ports
| Network ports | 1 × RJ-45 10M/100M |
| Network mode | Ethernet, Wi-Fi |
| Light indicator | The indicator shows alarm status, arming and disarming, network connection and faulty device. |
| Buttons | Reset button, power button and AP switch button. |
Features
| Tamper alarm | yes |
| Remote update | Cloud update |
| Remote configuration | yes |
| Arming and disarming | App, keypad, remote control, card, scheduled arming and disarming. |
| Audio outputs | 1 channel |
| Sound control | yes |
| Voice broadcast via: | Local speaker. |
| Mobile app | yes |
| Cache memory | up to 50 alarm messages |
| Low battery alarm | yes |
Wireless network
| Carrier frequency | 868.0 MHz–868.6 MHz |
| Max. communication distance | Up to 2000 m in open space |
| Communication method | Two-way |
| Encryption mode | AES128 |
| Wi-Fi | Wi-Fi 2.4 GHz (802.11 b/g/n) |
| Frequency-hopping spread spectrum | yes |
Technical
| Power supply | 100–240 VAC, 50/60 Hz |
| Battery | Built-in lithium battery |
| Operating current | 80 mA |
| Operating temperature | 0 °C to +45 °C |
| Operating humidity | 10%–90% (RH) |
| Dimensions | 174.8 mm × 174.8 mm × 38.3 mm |
| Mounting | Wall mount; desktop |
| Net weight | 0.51 kg |
| Gross weight | 0.86 kg |
| Certifications | CE EN 50131-1:2006+A1:2009+A2:2017+A3:2020 EN 50131-3:2009 EN 50131-6:2017+A1:2021 EN 50131-5-3:2017 EN 50131-10: 2014 EN 50136-2: 2013+A1:2023 Security Grade 2 Environmental Class II ATS category: SP2/DP2 |
| Housing | PC + ABS |
