Wireless alarm system kit Dahua ART-ARC3000H-03-GW2(868)
€278.46
Tax included

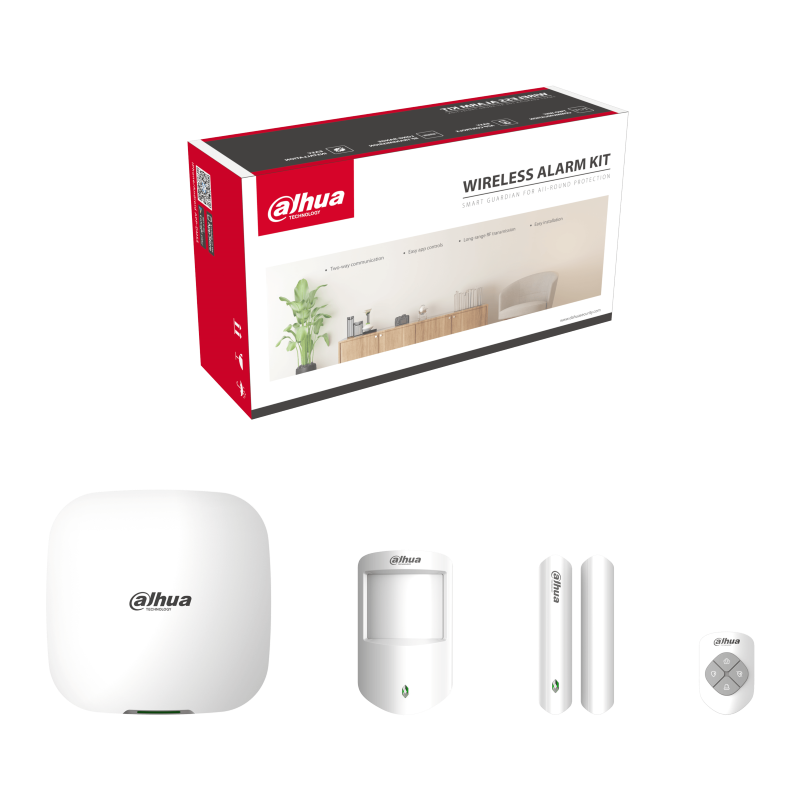

Kit with hub, PIR detector, door detector and remote. Supports up to 150 devices. Two-way 868 MHz communication with AES128 encryption and frequency hopping. Built-in 2.4 GHz Wi-Fi. Range up to 2000 m (hub), 1600 m (PIR), 1200 m (door), 900 m (remote). PIR detection up to 12 m with 3 sensitivity levels and pet immunity up to 18 kg. Light indicators and control buttons. Battery life up to 5 years (depending on device). Cloud updates.
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
General
| Type | KIT |
Input / Output
| Connected devices | 150 |
| User management | Hub: Feature sharing for mobile app users |
| Connected sirens | 6 |
| Connected remotes | 64 |
Ports
| Network ports | Hub: 1 × RJ-45 10 M/100 M Ethernet port |
| Network mode | Ethernet, Wi-Fi and cellular network |
| Light indicator | Hub: 1 for multiple states (alarm, arm, disarm, networking and fault); Remote: 1 × two-color status indicator (green: normal, red: abnormal); Door detector: 1 × green alarm indicator; PIR detector: 1 × |
| Buttons | Hub: 1 × reset, 1 × power, 1 × AP; Remote: 4 (Home, Away, Disarm and SOS); Door detector: 1 × power button; PIR detector: 1 × power button |
| Buzzer | Hub: Built-in |
Features
| Tamper alarm | yes |
| SMS | Hub: Yes (up to 5 phone numbers) |
| Alarm as phone call | Hub: Yes (up to 5 phone numbers) |
| Video linkage | yes |
| Network protocol | Hub: TCP/IP, including PPTP, L2TP, DHCP, UPNP and NTP |
| Remote update | Cloud update |
| Remote configuration | yes |
| Arming and disarming | Hub: App; remote; schedule |
| Configured parameters retained on power loss | yes |
| Mobile app | yes |
| Cache memory | Hub: Max. 50 records (ANR) |
| Low battery alarm | yes |
| Search | Hub: Notification check, device status and firmware version. Signal strength detection.; Remote: Signal strength detection; Door detector: Signal strength detection; PIR detector: Signal strength det |
| Test mode | yes |
Wireless network
| Carrier frequency | 868.0 MHz–868.6 MHz |
| Max. communication distance | Hub: Up to 2000 m outdoors; Remote: Up to 900 m outdoors; Door detector: Up to 1200 m outdoors; PIR detector: Up to 1600 m outdoors |
| Communication method | Two-way |
| Encryption mode | AES128 |
| Wi-Fi | Wi-Fi 2.4 GHz (802.11 b/g/n) |
| Frequency-hopping spread spectrum | yes |
Technical
| Power supply | Hub: 12 V DC, 1.5 A (power adapters optional); Remote: CR2032 battery; Door detector: CR123A battery; PIR detector: CR123A battery |
| Battery | Hub: Built-in lithium battery |
| Battery life | Hub: 12 hours on standby battery; Remote: 5 years; Door detector: 5 years; PIR detector: 4 years |
| Consumption | Remote: Max. 85 mW; Door detector: Max. 70 mW; PIR detector: Max. 75 mW |
| Operating temperature | Hub: –10 °C to +50 °C (indoor); Remote: –10 °C to +55 °C (indoor); Door detector: –10 °C to +55 °C (indoor); PIR detector: –10 °C to +55 °C (indoor) |
| Operating humidity | 10%–90% (RH) |
| Dimensions | Hub: 163.0 mm × 163.0 mm × 32.0 mm; Remote: 60.0 mm × 39.5 mm × 15.0 mm; Door detector: 100.2 mm × 20.8 mm × 20.3 mm; PIR detector: 104.0 mm × 60.0 mm × 50.0 mm |
| Mounting | Hub: Wall mount; Door detector: Bracket mount; PIR detector: Wall mount |
| Certifications | CE |
| Housing | PC + ABS |
Specification
| Sensor | Door detector: Reed switch; PIR detector: PIR sensor |
| Max. detection distance | PIR detector: 12 m (90°) at 2.2 m mounting height |
| Reading speed | PIR detector: 0.3 m/s–3 m/s |
| Pet immunity | PIR detector: ≤ 18 kg |
| White light resistance level | PIR detector: 6500 lx |
| Two-way digital temperature compensation | PIR detector: Yes, no reduction of detection distance at high temperature |
| Sensitivity | PIR detector: 3 adjustment levels |
| Activation threshold | Door detector: < 40 mm |
| Motion sensor | yes |
Temperature
| Temperature sensor | yes |
| Measuring range | Door detector: –15 °C to +65 °C (indoor); PIR detector: –15 °C to +65 °C (indoor) |
| Measuring accuracy | ± 1 °C |
| Step | 1 °C |
Peripherals
| Expansions | Door detector: 1-channel dry contact input |
