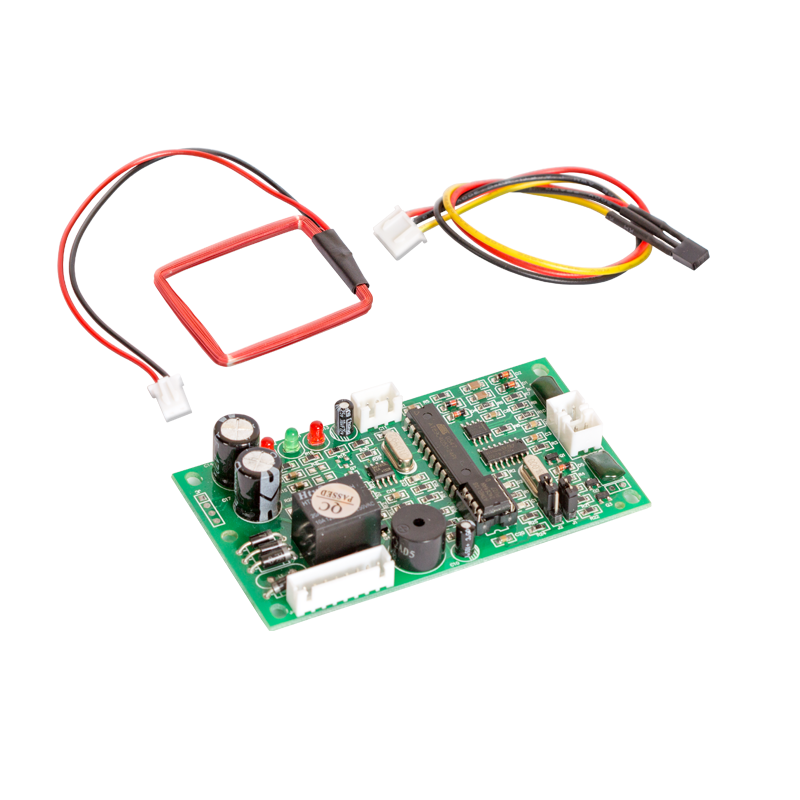

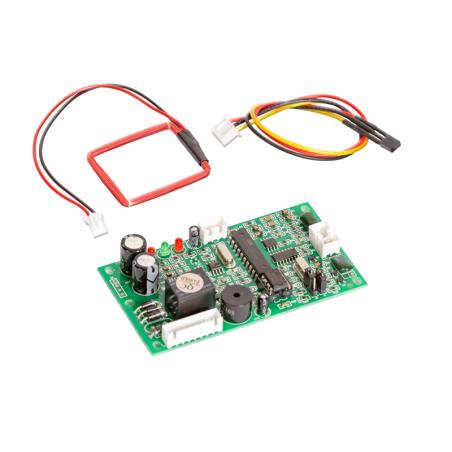

125 kHz standalone controller for contactless RF cards Nippon ECK-7031
€31.88
Tax included
The ECK-7031 is a standalone controller and contactless card reader from Nippon's access control series. It holds up to 1000 contactless cards, wristbands or key fob tags. It is designed for concealed mounting, providing a high level of security. Compatible with all Nippon and Farfisa door entry systems on offer.
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
| Brand | NIPPON |
General
| Type | Standalone controller |
| Material | Plastic |
| Operating frequency | 125 kHz |
| Supports up to | 1000 cards |
Features
| Admin code | yes |
| Electric lock control | yes |
| Flush-mount capable | yes |
| Audible indication | yes |
| Light indication | yes |
| NC contact | yes |
| NO contact | yes |
| User deletion via | Code |
| User registration via | Code |
Technical
| Programming | Via remote, Via master cards |
| Infrared modulation frequency | 23 kHz |
| Reading distance | 10 - 50 mm |
| Operating voltage | 9 - 12 V |
| Operating current | 60 mA |
| Door opening time | 1 - 5 seconds |
| Mounting | Concealed |
| Dimensions | 92 x 35 x 12 mm |
