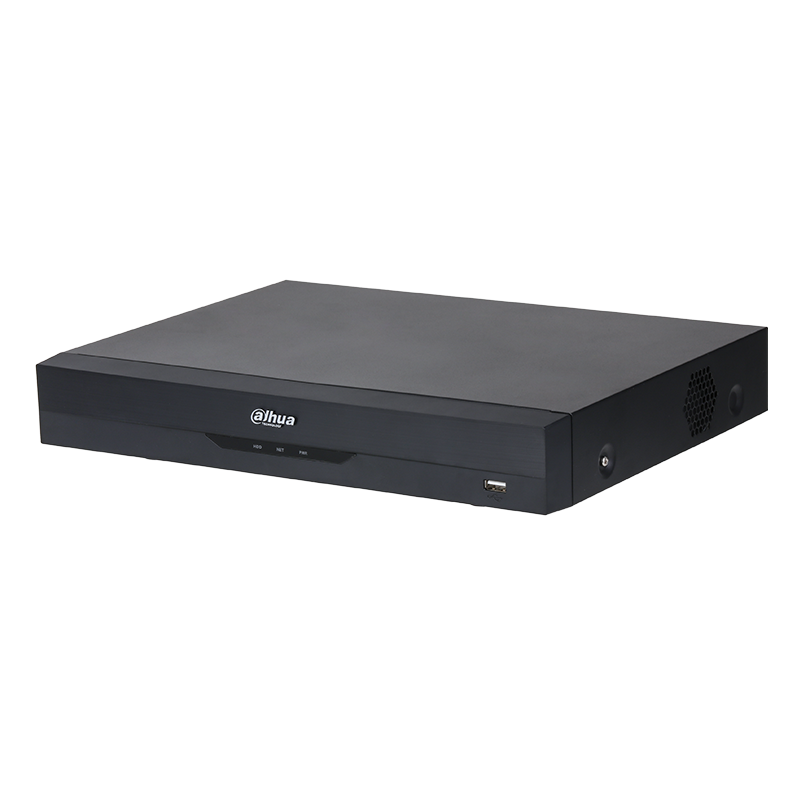

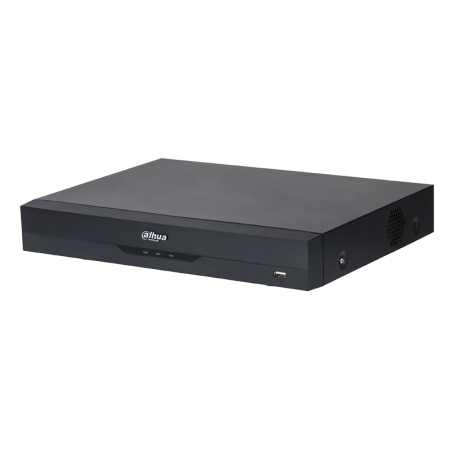

4-channel XVR recorder Dahua XVR5104HE-I3
€142.80
Tax included
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
General
| Series | WizSense |
| Processor | Built-in |
| Operating system | Embedded LINUX |
| Analog camera input | 4 channels, BNC |
| IP camera input | 6 channels |
| Supports HDCVI cameras | 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps |
| AHD cameras | 5MP, 4MP, 1080P@25/30, 720P@25/30fps |
| TVI cameras | 5MP, 4MP, 1080P@25/30, 720P@25/30fps |
| CVBS cameras | PAL/NTSC |
| Resolution | 6MP, 5MP, 4MP, 3MP, 1080P, 720P |
| Max. camera resolution | 6 MP |
| Storage | 1 SATA port, up to 16TB |
Video
| Recording | Main stream: All channel 5M-N (1 fps–10 fps); 4M-N/1080p (1 fps–15 fps); 1080N/720p/960H/ D1/CIF (1 fps–25/30 fps) Sub stream: D1/CIF (1 fps–15 fps) |
| Video compression | AI Coding; H.265+; H.265; H.264+; H.264 |
| Streaming capability | 2 streams |
| Bandwidth | 32 Mbps incoming |
| Bitrate | 32 kbps–6144 kbps |
| Recording mode | Main, motion detection; smart; alarm; POS |
| Recording playback | 1/4 |
| Playback features | Instant playback, general playback, event playback, tag playback, smart playback (face and motion recognition) |
| Backup | USB device |
Perimeter protection
| Performance | Advanced mode: 1 channel, 10 IVS per channel; General mode: 2 channels, 10 IVS per channel |
| AI features | SMD Plus (human/vehicle detection), Perimeter protection, Face detection, Face recognition |
| Perimeter protection by recorder | Advanced mode: 1 channel, 10 IVS per channel; General mode: 2 channels, 10 IVS per channel |
| Face recognition by recorder | 1 |
Face recognition
| Face recognition | yes |
| Performance | 1 channel |
| AI (Artificial Intelligence) search | Up to 10 face databases with 10,000 images |
Smart features
| Face recognition | yes |
| Smart motion detection | yes |
| Enhanced smart motion detection | 4-channel: Secondary filtering for humans and motor vehicles, reducing false alarms caused by leaves, rain and changing light conditions |
| Alarm signal | Motion detection, video loss, tampering and local alarm |
Certification
| Certifications | FCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2; EN 61000-3-3; EN 55032; EN50130; EN 55024 |
| Third-party compatible | ONVIF; RTSP; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Samsung |
Additional ports
| Audio input | 4-channel RCA, 4-channel BNC (coaxial audio) |
| Audio output | 1 (RCA port) |
| Alarm input/output | 8/3 |
| Video port | 1 x HDMI, 1 x VGA |
| USB | 2 USB 2.0 |
| RS485 | 1 port, for PTZ control |
| Video port resolution | 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Multi-screen video output | With IP extension mode off: 1/4; With IP extension mode on: 1/4/6 |
| Two-way audio | Yes |
| Audio compression | G.711A, G.711U, PCM |
| Audio sample rate | 8KHz, 16 bit per channel |
| Audio bitrate | 64 Kbps per channel |
Network features
| Ethernet | 1 RJ-45 Ports (10/100 Mbps) |
| Mobile app | Android, iOS |
| Network protocols | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P |
| Compatibility | ONVIF 21.06; CGI Conformant |
| Web browser live view | Chrome; IE9 or later; Firefox |
Power supply
| Power supply | DC 12V/1.5A |
| Power consumption | < 4 W |
Operating conditions
| Operating temperature | -10°C to +55°C |
| Operating humidity | 0–90% RH |
Construction
| Dimensions | 325.0 mm × 257.2 mm × 55.0 mm |
| Net weight | 1.1 kg |
| Gross weight | 1.8 kg |
