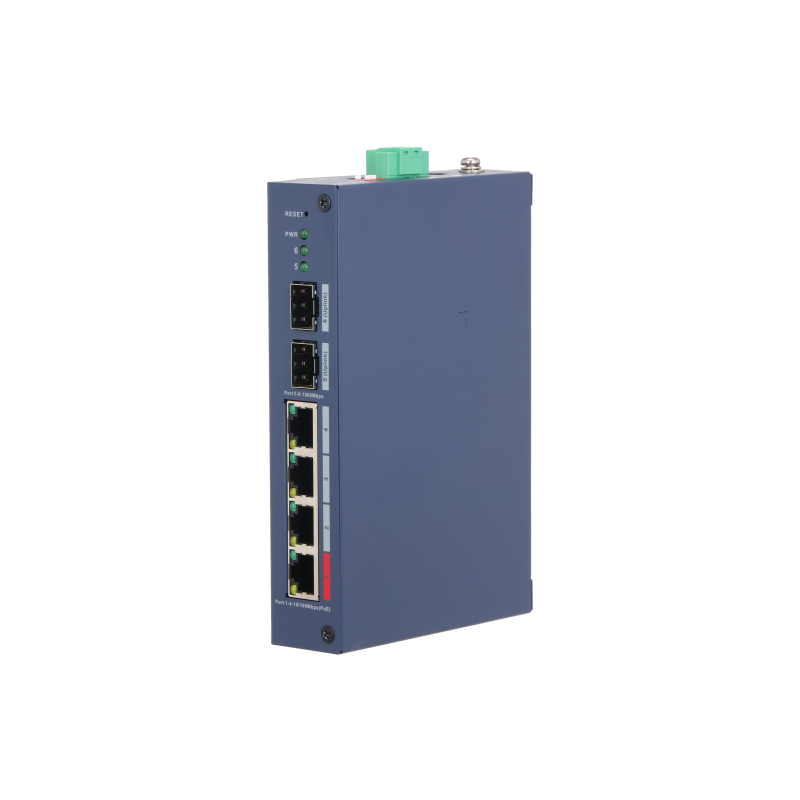

Switch Dahua CHS4206-4ET-90
€112.20
Tax included
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
General specifications
| Managed | yes |
| Layer | Layer 2 |
| Gigabit | no |
| PoE | yes |
| Hi-PoE | Port 1: 90W (red port) |
| Number of ports | 4 |
| Mounting type | DIN rail or free-standing |
| Usage type | With extra protection |
Detailed specifications
| Ethernet ports | 4 × RJ-45 10/100 Mbps (PoE), 2 × SFP 1000 Mbps (uplink) |
| Optical ports | 2*1000 Mbps |
| PoE consumption | Port 1 ≤90W, Ports 2 to 4 ≤30W, Total ≤90W |
| PoE pin assignment | 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-) |
| PoE protocols | IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt |
| PoE Watchdog | yes |
| Compliant with standards | IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3z; IEEE 802.3ad |
| Switching capacity | 4.8Gbps |
| Packet forwarding rate | 3.57Mpps |
| Packet buffer memory | 4Mbit |
| MAC table | 8000 |
| Flow control | Supports IEEE802.3X-based flow control |
| Power supply | 48–57 VDC, 2–1.69 A |
| Optional second power supply for redundancy | yes |
| Operating temperature | -30°C ~ 65°C |
| Operating humidity | 10% ~ 90% (non-condensing) |
| Electrostatic protection | Air discharge - 8KV; Contact discharge - 6KV |
| Lightning protection | Common mode 4KV, Differential mode 2KV |
| Weight (net) | 0.32 kg |
| Dimensions (W x L x H) | 154.3mm × 110.4mm × 30mm |
Additional features
| VLAN support | Port-based VLAN |
| Port mirroring | Local Port Mirroring, N:1 Mirroring |
| DHCP support | DHCP client |
| Security features | Port isolation |
| Control | Web Management, Cloud Management, Logs, Fault Alarm |
| PoE management | Power consumption management, Power on/off, Overload power cut-off, Green PoE |
