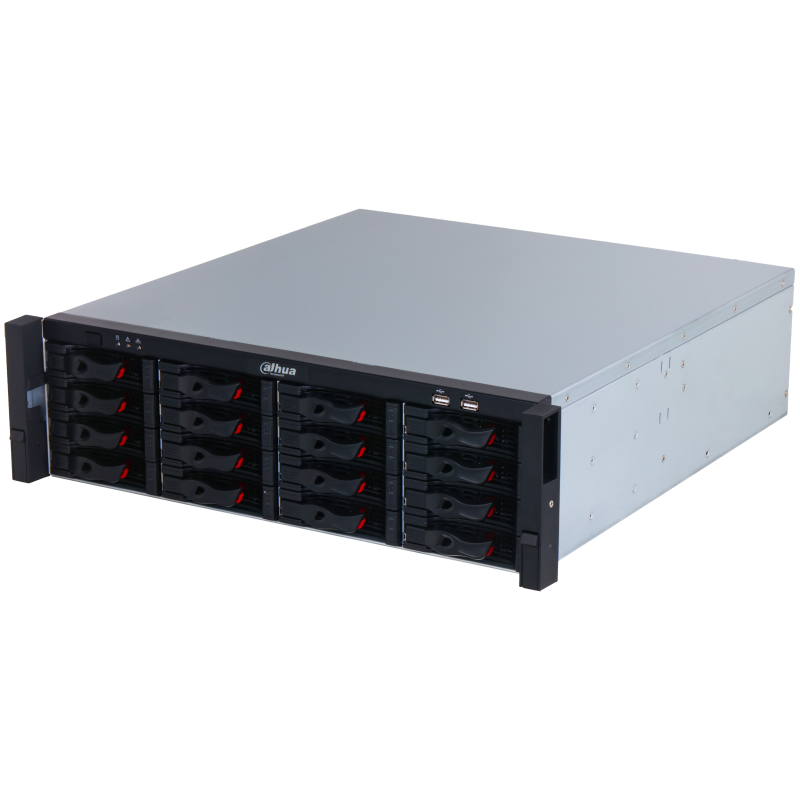

128-channel NVR recorder Dahua NVR616H-128-XI
€6,147.54
Tax included
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
General
| Series | WizMind |
| Color | Black |
| Processor | Built-in |
| Operating system | Embedded LINUX |
| IP camera input | 128 channels |
| Resolution | 32 MP; 24 MP; 16 MP; 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 960p; 720p; D1; CIF; QCIF |
| Max. camera resolution | 32 MP |
| Storage | 16 SATA ports, up to 20TB |
Video
| Video compression | H.265/H.264 |
| Smart Codec | Smart H.265+/ Smart H.264+ |
| Bandwidth | AI disabled: 1280 Mbps incoming, 1280 Mbps recording and 1024 Mbps outgoing. AI enabled: 640 Mbps incoming, 640 Mbps recording and 512 Mbps outgoing |
| Decoding Capacity | AI disabled: 2-channel 32 MP@30 fps; 2-channel 24 MP@30 fps; 4-channel 16 MP@30 fps; 5-channel 12 MP@30 fps; 8-channel 8 MP@30 fps; 11-channel 6 MP@30 fps; 12-channel 5 MP@30 fps; 16-channel 4 MP@30 fps; 32-channel 1080p@30 fps；128-channel D1@30 fps AI e |
| Recording playback | Up to 16 channels |
| Playback features | Instant playback, general playback, event playback, tag playback, smart playback |
| Backup | USB device / network |
Perimeter protection
| AI features | AcuPick, E-PTZ, Face detection, Face recognition, Heat map, Intrusion, Metadata, ANPR, People counting, Perimeter protection, PPE Detection, SMD Plus (human/vehicle detection), Stereo behavior analytics, Line crossing |
| Perimeter protection by camera | 128 channels |
| Perimeter protection by recorder | Simultaneous mode: 32 channels, 10 IVS rules per channel; Heterogeneous mode: 24 channels, 10 IVS rules per channel |
| SMD Plus by camera | 128 channels |
| SMD by recorder | 32 channels |
| Face recognition by camera | 64 channels |
| Face recognition by recorder | Simultaneous mode: 32-channel FD (by camera) + FR (by recorder), image stream: 32 face images/sec; 8-channel FD (by recorder) + FR (by recorder), video stream: 16 face images/sec; Heterogeneous mode: 16-channel FD (by camera) + FR ( |
| Face detection by camera | 64 channels |
| Face detection by recorder | Simultaneous mode: 8 channels; Heterogeneous mode: 5 channels |
| License plate recognition by camera (ANPR) | 128 channels |
| Video metadata by camera | 64 channels |
| Video metadata by recorder | 8 channels |
Smart features
| Intelligent video surveillance | Line crossing, Intrusion |
| Smart motion detection | yes |
| Alarm signal | Motion detection; local alarm; alarm box; camera external alarm; network alarm; scene change; PIR alarm; thermal alarm |
Certification
| Certifications | Class A CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014 |
| Third-party compatible | ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha |
Additional ports
| Audio input | 1 (RCA port) |
| Audio output | 2 (RCA port) |
| Alarm input/output | 32/16 |
| Video port | 4 x HDMI, 2 x VGA |
| USB | 4 USB ports (2 rear USB 3.0, 2 front USB 2.0) |
| RS232 | 1 |
| RS485 | 2 |
| Video port resolution | VGA: 1920 × 1080, 1280 × 1024, 1280 × 720; HDMI1&2: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; HDMI3: 7680 × 4320, 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; HDMI4: 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Multi-screen video output | Screen 1: 1/4/8/9/16/25/36/64; Screen 2: 1/4/8/9/16/25/36 |
| Audio compression | G.711a; G.711u; PCM; G726 |
Network features
| Ethernet | 4 (10/100/2500 Mbps Ethernet port, RJ-45) |
| Mobile app | Android, iOS |
| Network protocols | HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; SNMP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; PPPoE; FTP; DDNS; Alarm Server; IP Search (Supports IP camera, DVR, NVS, etc.); Multicast; P2P; Auto Registration; iSCSI |
| Compatibility | ONVIF 22.06(Profile T; Profile S; Profile G); CGI; SDK |
| Web browser live view | IE, Chrome, Firefox, Safari |
Power supply
| Power supply | 100–240 VAC, 50±2% Hz |
| Power consumption | < 25W (without HDD) |
Operating conditions
| Operating temperature | -10°C to +55°C |
| Operating humidity | 10% to 93% RH (non-condensing) |
Construction
| Dimensions | 485 mm × 508.3 mm × 133.2 mm |
| Net weight | 11.95 kg |
| Gross weight | 16.14 kg |
